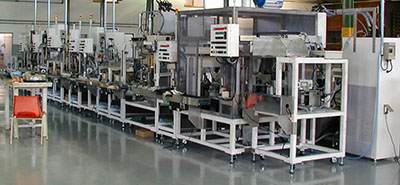

Components used in actual production line machinery and equipment are miniaturized and modularized

A System for Comprehensive, Experiment-Based Mechatronics Technology Learning

Features:

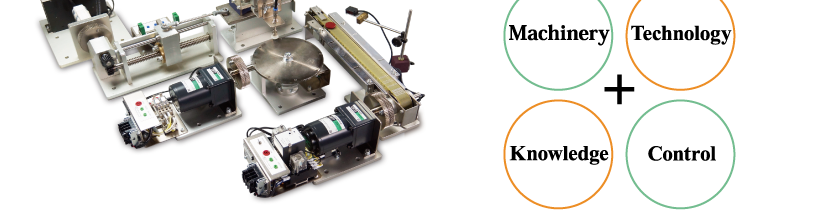

Completely portable, since the mechanical components are miniaturized and modularized. Components can be easily combined – over 300 different systems can be built. A FA line system can be built on a desktop without using any tools. Total learning – from mechatronics basis (machinery, control) to application – is possible. Learning suited to the user’ s level is possible through a training program linked to textbooks and training materials.

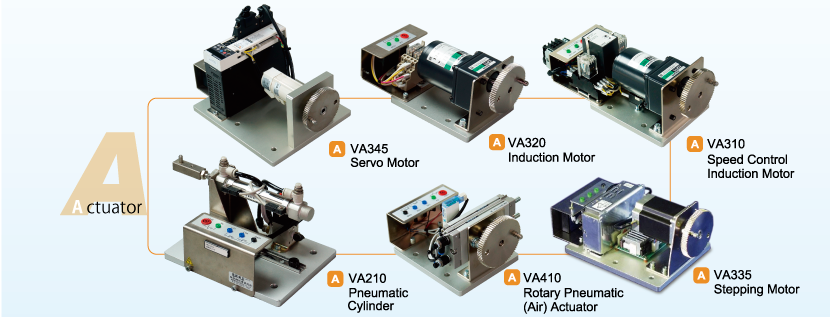

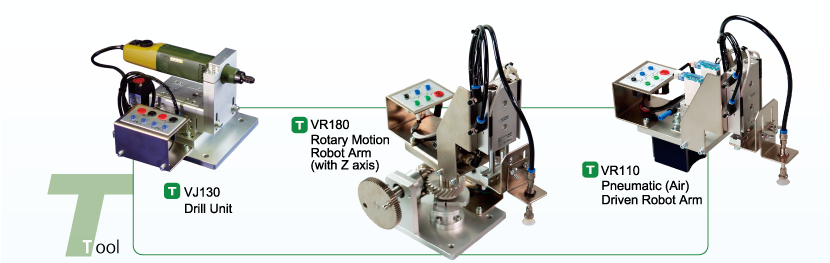

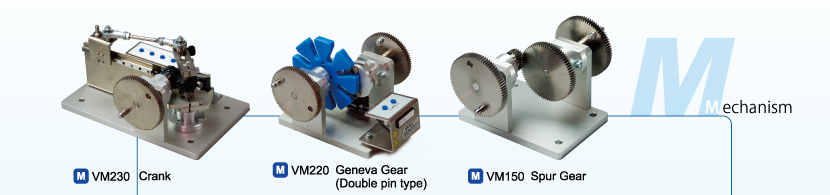

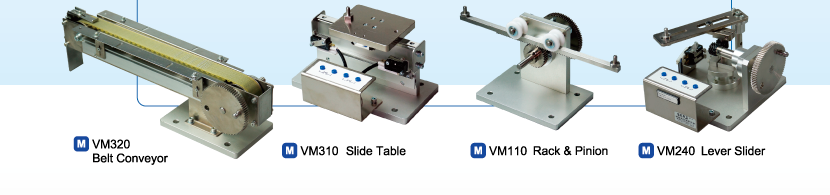

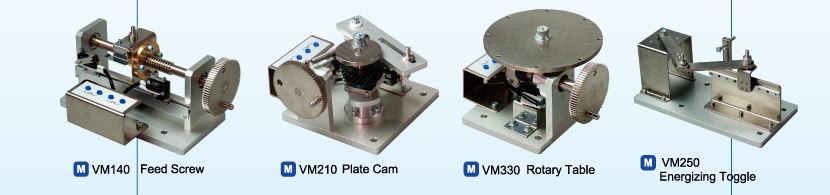

Freely combine over 200 varieties of mechanism modules and learn about machine basics.

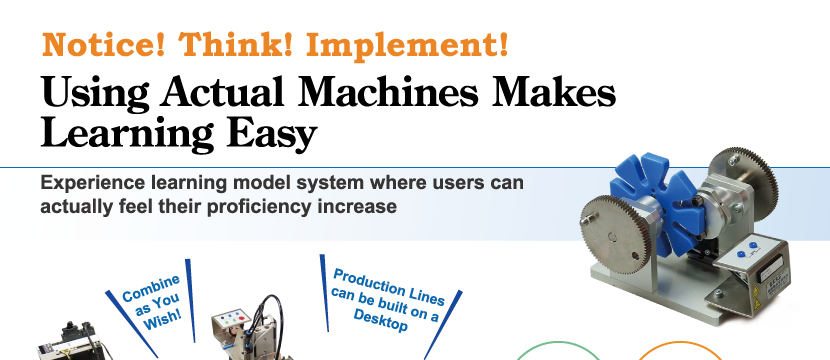

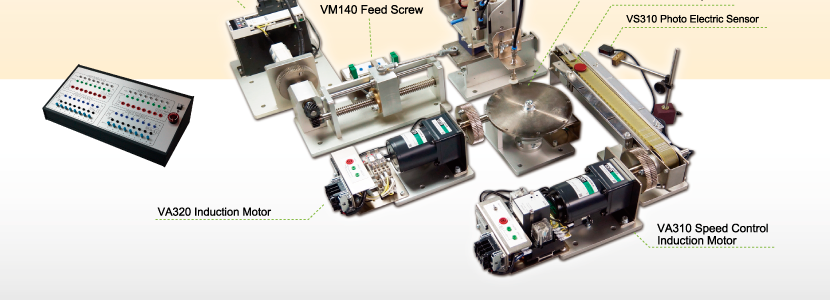

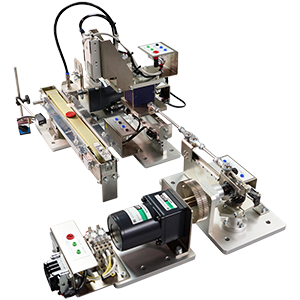

Production lines and applied systems can be built on a desktop by combining modules.

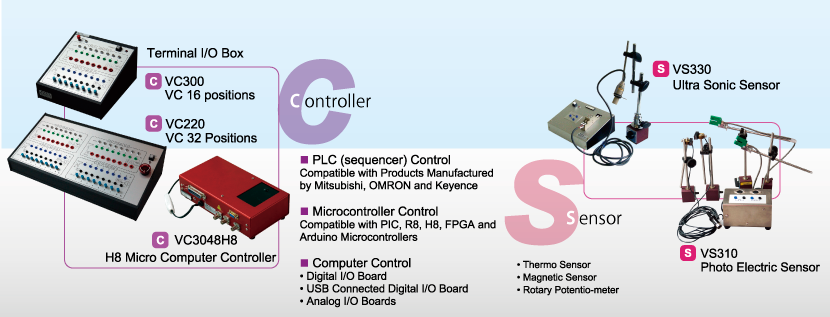

No tools are required for the training system’s assembly or electrical wiring, and training can begin in about ten minutes. Since the system is modular, it can be stored on a shelf after use, and does not take up space. Can also be used for electrical wiring training using Y terminals. With just a push of a button, the unit can be switched between the PLC (sequencer), microcontroller, and computer control.

	There are more than 300 types of combinations
	Automatic Supply of Parts Pick and Place Automatic Assembly System Models	Automatic Processing System Models Free-Flow Production Line Index Production Line, Etc.

Even if you do not have in-house trainers,
do not worry – we provide in-house training with our robust system.

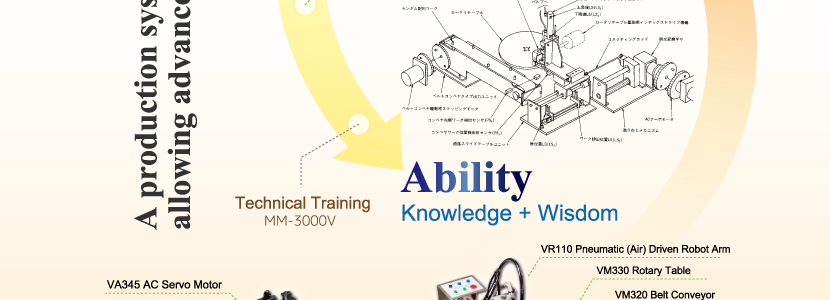

We have a wide array of training materials, from the basics of mechatronics, to advanced mechanism diagrams and control training, the texts.
Training using MM-3000V proceeds along the curriculum in these materials.
These texts are available in English, the language of the other countries.

In-house training is possible since we will send a highly experienced trainer suited to your requirements.
Also, we will give lectures on how to provide training using the MM-3000V, so in the future you can progress via self-study.

We have prepared video training materials in a curriculum format so that training is possible even if there is not a trainer available to teach.
Since one training session is between thirty minutes to one hour, the time after working can be used effectively.

The Test of Technical Ability on Mechatronics is a test offered by the Japan Association for Automation Advancement, and is the global standard for mechatronics.
The MM-3000 series is the standard training material for this test, and proficiency levels can be checked by taking the test.

Selected in Teaching Environments in Japan and Abroad

The MM-3000V series has become the mechatronics learning standard, having been widely implemented in settings such as Japanese universities, senior high schools, technical colleges, and vocational schools, as well as private corporations with production plants, and in recent years, educational institutions overseas.

Vocational Schools: Polytechnic colleges throughout Japan, polytechnic centers, prefectural vocational schools, etc. – over 60 schools Universities: Kanagawa University, Tokai University, Tokyo Institute of Technology, etc. Technical Colleges: Oita National College of Technology, Okinawa National College of Technology, Nagano National College of Technology, Maizuru National College of Technology, Tsuyama National College of Technology, Tokyo Metropolitan College of Industrial Technology, Kagoshima National College of Technology, etc. Technical High Schools: Approximately 70 schools throughout Japan, focusing on machinery, electrical, and electrical machinery departments. Private Corporations: Asahi Glass, Co., Ltd., Mitsubishi Heavy Industries, Ltd., Toyota Motor Corporation, Seiko Epson Corporation, Toppan Printing Co., Ltd., and over a dozen more. Overseas: Turkey, Kazakhstan, Tunisia, Senegal, Mexico, Sri Lanka, Taiwan, and Malaysia 　* List of organizations which have implemented our productions is as of July 2013.
